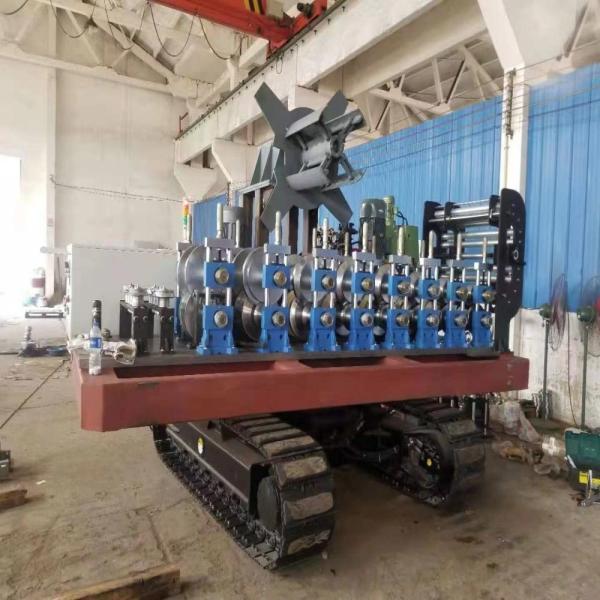

14 Station Portable Rain Roll Form Gutter Fabrication Machine

Place of Origin : Jiangsu, China

Brand Name : HRF

Price : $15,000.00/sets 1-1 sets

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works

Showroom Location : Turkey, Germany, India, Russia, South Korea, Uzbekistan

Condition : New

Type : Tile Forming Machine

Tile Type : Glazed

Use : GreenHouse

Production Capacity : 30m/min

Voltage : 380V Or As Customize

Dimension(L*W*H) : 4200*1200*2500MM

Weight : 5000 kg

Warranty : 1 Year

Key Selling Points : High Productivity

Rolling thinckness : 1.5-2.5mm

Feeding width : 900mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2022

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Material Thickness : 1.5-2.5mm

Control system : automatic

Main Power : 15kw

forming station : 14

work speed : 30m/min

way of drive : chain ,1 inch

Forming speed : 30m/min

Roll station : 18stations

name : greenhouse gutter making machine small mobile gutter making machines

Contact Now

Company Profile

14 Station Portable Rain Roll Form Gutter Fabrication Machine

Product Description

we use H -beam welding for the frame,After polishing and painted the color , the cutting blade with the rollers are use Cr12,quenched 58-62,all electrical parts use import brand ,After all processing, the machine achieves perfect construction and long life.

Details Images

Profile drawing

Production process

3T manual decoiler---Feeding and guiding--- --Roll Forming--hydraulic Cutting--Outables

Product Paramenters

Main power:15KW motor made in China Driving system: double 1 inch chain drive Roll stations: 18 stations, Machine structure: welded panel structure Material of roller: GCr15 HRC58-62 Diameter of shaft:￠70mm Max Line speed of roll forming machine: 20m/min

1. 3T Manual Decoiler,1 set

2. Roll forming machine,1 set

3. Cutting blade, 1 set

4. Hydraulic station,1 set

5. PLC control cabinet,1 set

6. Out table (4m),1 set

7. Spare incluing: 2 switches, a set of tool box
